The jelly cup sealing machine is a specialized piece of equipment designed for the efficient and hygienic sealing of jelly cups, commonly used in the food packaging industry. This innovative machine employs advanced technology to apply airtight seals on plastic or glass containers filled with jelly, ensuring product freshness while maintaining an appealing presentation for consumers. With features such as adjustable temperature controls, speed settings, and automatic feeding systems, the jelly cup sealing machine streamlines production processes by minimizing manual labor and reducing potential contamination risks. It also promotes sustainability through its capability to work with eco-friendly materials, aligning with contemporary consumer preferences for environmentally responsible packaging solutions. By integrating high-performance sensors and user-friendly interfaces, this machine not only enhances operational efficiency but also significantly lowers waste levels associated with traditional sealing methods.

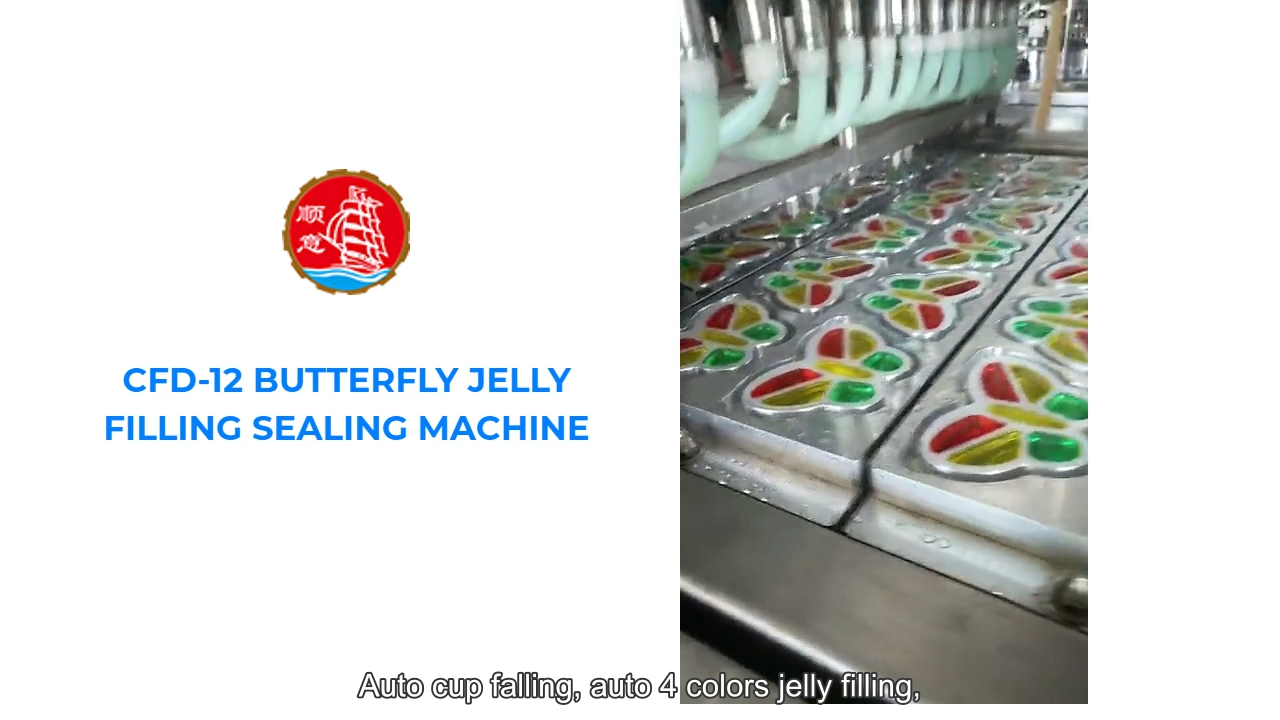

Function of Butterfly Jelly Filling Machine:

1. This machine is suitable for filling and sealing cup with jelly。

2. Electric and pneumatic combined driving are used, resulting in stable driving in order to save man power and reduce cost. Supply of cups, filling , sealing, trimming, output of products and take -up of waste film are fully automatic.

3. High efficiency, 12 cups can be filled, sealed, and trimmed at the same time in the machine.

4. Revision device of photoelectric sensors are installed in the machine to auto revise the positive of sealing film through detection of color mark, assuring the accurate position of the sealing pattern.

5. Hot sealing device, tight sealing, and absolutely reliable quality.

6. mix date printer according to customer's demand.

Technical parameter:

One Mould: 2*6=12

Model: CFD12

Speed:  9000-13000 cups/h

Volume:  adjustable

Power Consumption: 380V/50Hz 3 phase 4 lines

Max air Consumption: 1.6m³/min

Electric Consumption: 12kw

Machine Dimension:  8000*1130*2000mm

Weight: 4000kg

Performance

1、Automatic cup feeding

2、Automatic filling 3 color jelly (volume adjustable)

3、Date printing

4、Two times heating sealing

5、One time self-localization cutting

6、Automatic sensor correction

7、Automatic collect and release film

8、According to your cup sample to make the machine
