Origin: Shantou, Guangdong, China
MOQ: 1 SET
Delivery time: 35-45 working days
Price terms: EXW, FOB, CIF
Payment terms: T/T, Western union, LC or other payment
Warranty: 12 month

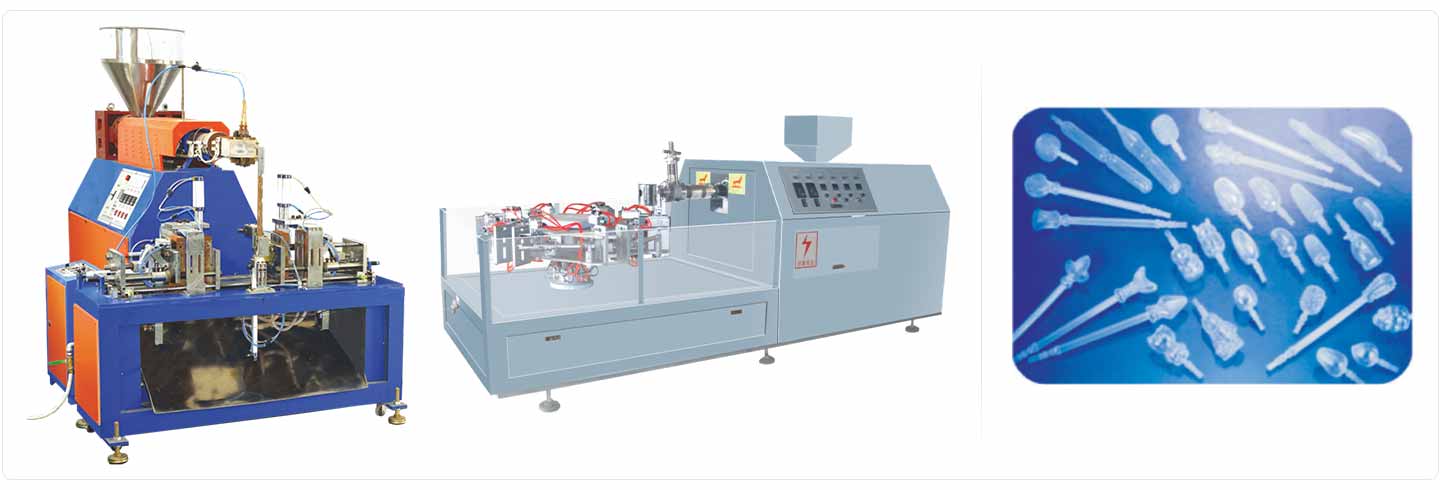

Screw extrusion plastic blowing technology is used for this unit and fully automatic temperature control system is used to control the temperature; the speed of the electric motor is adjusted in a stepless manner thus the rotation speed is stable with uniformed and smooth plastic pipe; further, its energy saving is also notable in this unit, the electric, pneumatic and mechanic parts are integrated bringing about stable performance and convenient operation; it is an ideal replacement for the manually operated products. This unit is applicable for blowing the bottles of volume under 1000ml with the materials of PE and PP granules, which are formed after heating in one installment.
| Model Parameter | CSR-B2 | CSR-2B2 |
| Productivity | 2500 sticks/hour | 5000 sticks/hour |
| Motor power | 5.5kw | 7.5kw |
| Heating power | 13kw | 15.5kw |
| Air consumption | 0.7m³/min Cubic meters/minute | 1.0m³/min Cubic meters/minute |
| Air pressure | 0.65-0.75mpa | 0.65-0.75mpa |
| Blowing materials | PP、PE、PS | PP、PE、PSs |
| Parameter Model | Max volume of bottle | Theoretical capacity PC/H | Max Diameter of bottle | Force of closing mould | Allowable mould width | Allowable mould thickness | Air pressure | Length/diameter ratio | Max plasticizing capacity kg/h | Size of equipment(L*W*H) | Power |
| CSR-B4 | 10ml-500ml | 2400 | 750MM | 700KG | 125mm | 118mm | 0.4Mpa | 25:1 | 25kg | 3400*1600*1700mm | 380V |
| CSR-B6 | 3500 | 35kg |
