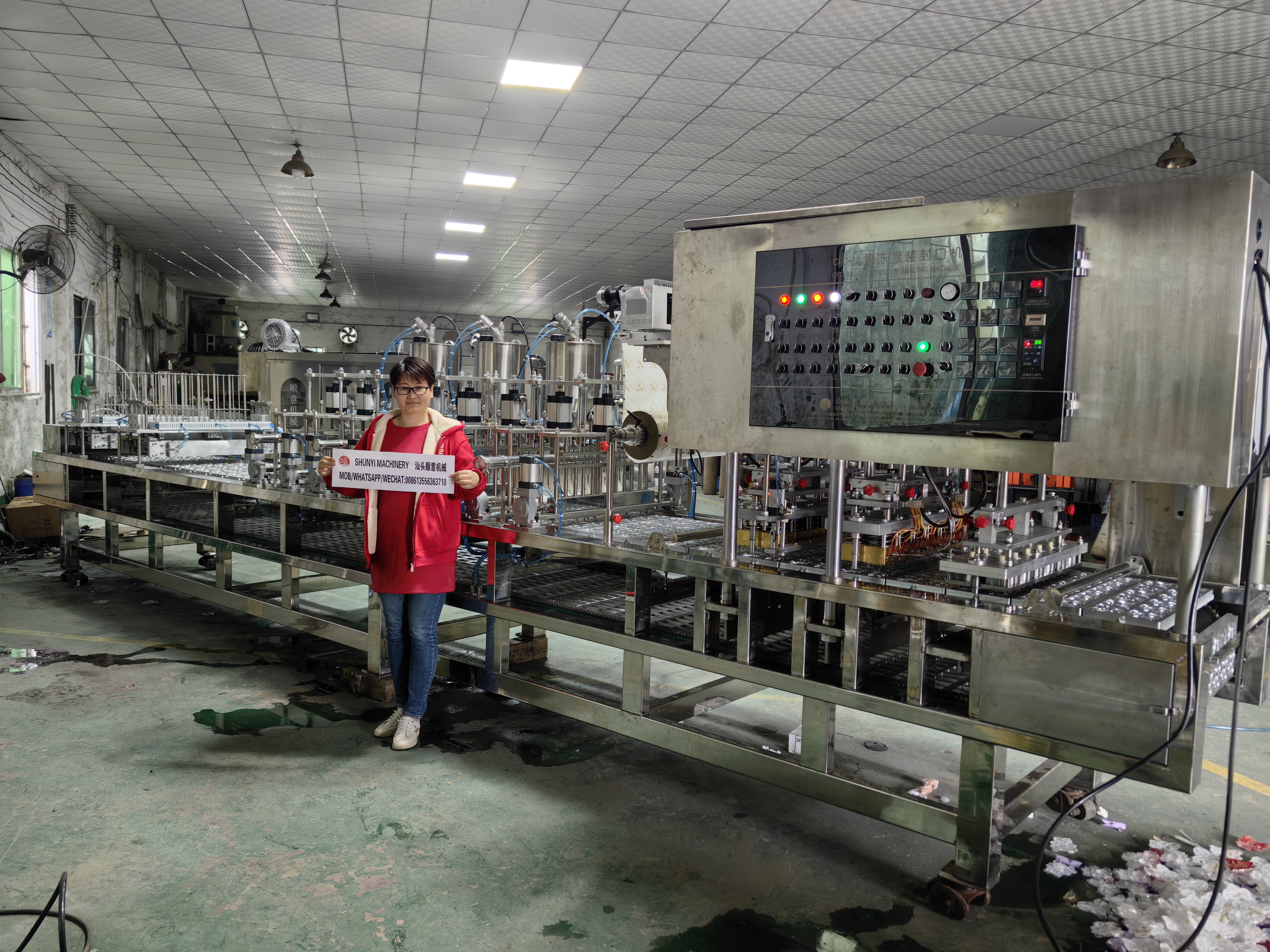

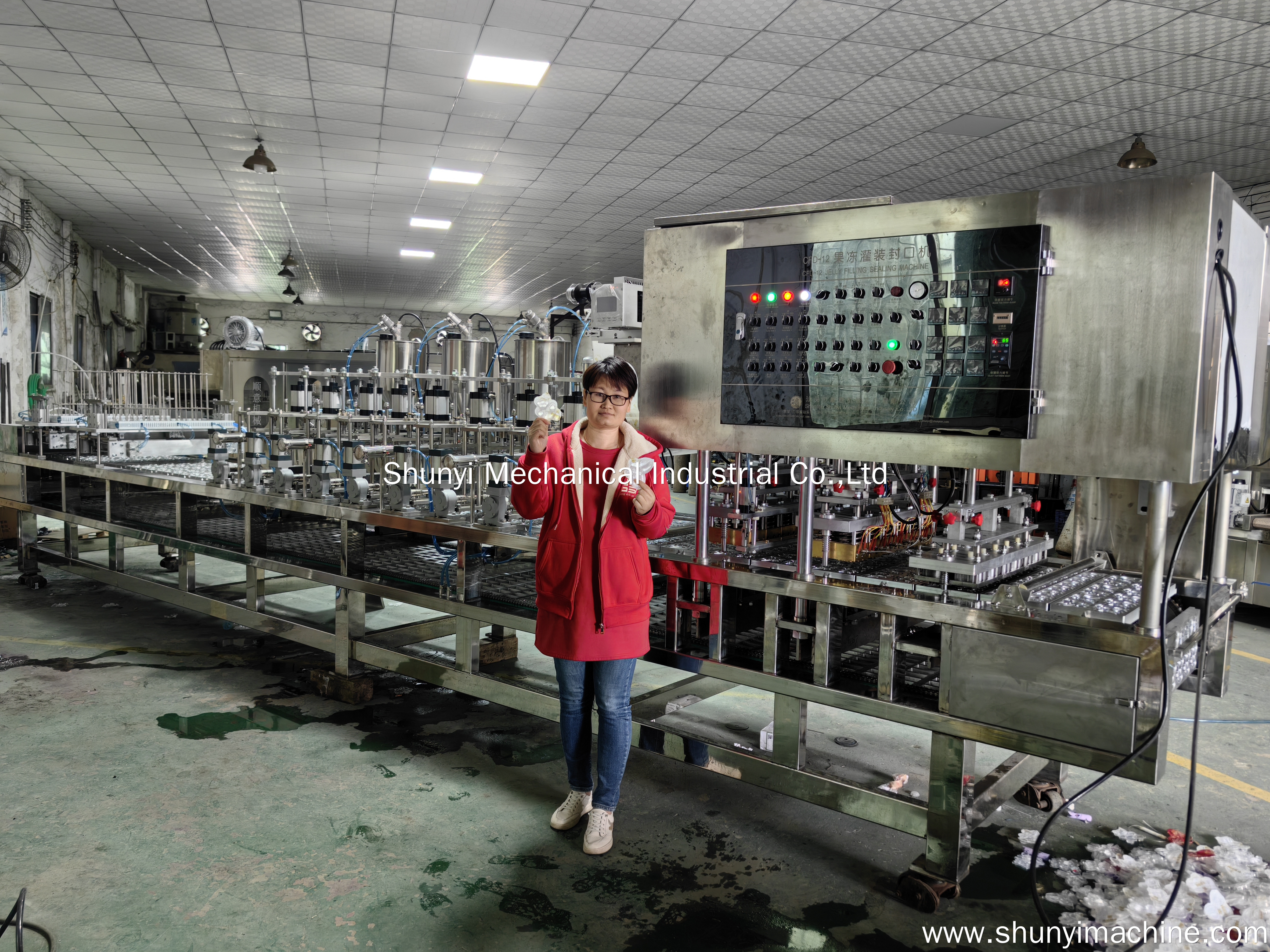

What is Jelly Cup Filling Sealing Machine?

The jelly cup filling sealing machine is a highly specialized piece of equipment designed to efficiently fill and seal individual cups with teddy bear jelly and butterfly jelly. This machine automates the entire process, from dispensing the correct amount of jelly into each cup to securely sealing them for freshness and convenience. The benefits of using a jelly cup filling sealing machine are numerous. Firstly, it significantly increases productivity by streamlining what would otherwise be a labor-intensive manual task. This allows manufacturers to produce large quantities of filled and sealed cups in a fraction of the time it would take manually. Additionally, these machines ensure consistency in both portion size and seal quality, resulting in uniform products that meet high-quality standards every time. Furthermore, they help reduce waste by minimizing product spillage and errors during the filling and sealing process.

Functions of Jelly Cup Filling Sealing Machine

1. This machine is suitable for filling and sealing cup with jelly.

2. Electric and pneumatic combined driving are used, resulting in stable driving in order to save man power and reduce cost. Supply of cups, filling , sealing, trimming, output of products and take -up of waste film are fully automatic.

3. High efficiency, 12 cups can be filled, sealed, and trimmed at the same time in the machine.

4. Revision device of photoelectric sensors are installed in the machine to auto revise the positive of sealing film through detection of color mark, assuring the accurate position of the sealing pattern.

5. Hot sealing device, tight sealing, and absolutely reliable quality.

6. mix date printer according to customer's demand.

Performance of Jelly Cup Filling Sealing Machine

1、Automatic cup feeding

2、Automatic filling 4 color jelly (volume adjustable)

3、Date printing

4、Two times heating sealing

5、One time self-localization cutting

6、Automatic sensor correction

7、Automatic collect and release film

8、According to your cup sample to make the machine

Processing And Select Material Requirement

(1) The cup mould of CFD filling sealing machine is made by cup sample, the mould material is adopt LF21 density acid-proof Aluminum.

(2) All the machine adopt stainless steel 304 ,except the big stress part and heating part adopt special material

 Conveyor Chain:According to Standard GB/T 1243 processing of short pitch precision roller stainless steel conveyor chain.

(4) Step box: high precision cam dividing box from Shandong Zhucheng

(5) Heating sealing: sealing is smooth and tight

(6)Cutting: Hard tooth stainless steel blade, cutter is keenness

(7) Printer: Fujian brand
